EC340H-04 多功能循環定時IC，睡眠低功耗，靜態電流5uA，電壓工作范圍寬，可以輸出高

電平和低電平兩種狀態。8種定時模式，可設定時間為：

                                                                      10小時ON~ 14小時OFF

                                                                         8小時ON~ 16小時OFF

                                                                         7小時ON~ 17小時OFF

                                                                         6小時ON~ 18小時OFF

                                                                         5小時ON~ 19小時OFF

                                                                         4小時ON~ 20小時OFF

                                                                         3小時ON~ 21小時OFF

                                                                         2小時ON~ 22小時OFF

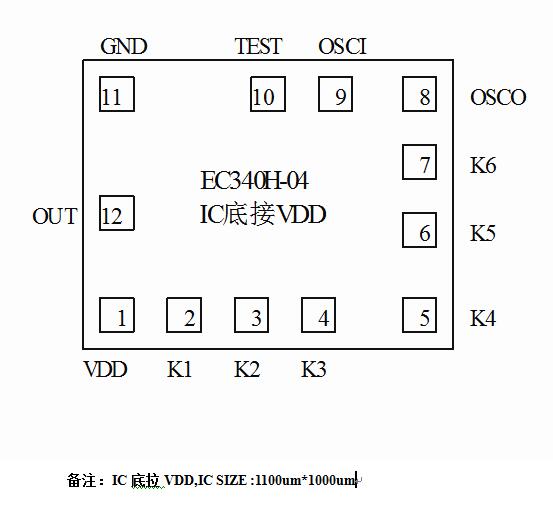

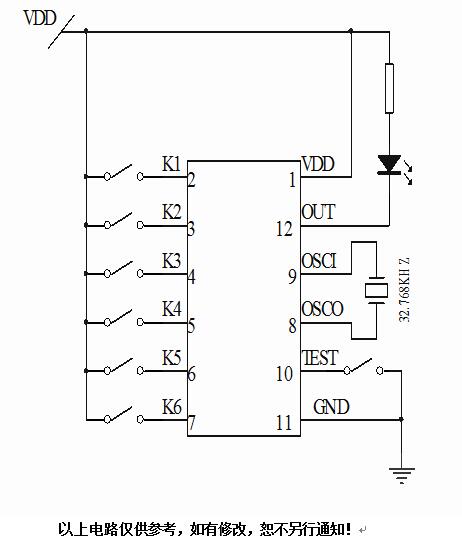

         定時芯片通電后，如果晶振不起振，OUT 輸出高平。晶振起振后OUT 輸出低電平，定時時間

到OUT 輸出高電平。TEST快速測試，按下TEST，定時8小時，OUT就相應的閃8次。高電平輸出有

20mA、低電平輸出有40mA，用選擇腳選擇定時模式。
